ENGINEERED BUILDINGS
Designed for local
businesses.
DB / S100 Series
888-427-6647
All our buildings are engineered to meet the 2020 Canadian Building Code requirements.
Standard features:
Choice of steel for the arch, depending on use:
We use the most suitable and effective levels of galvanization available
on the market, ensuring optimal protection against corrosion.
Lower portion of the arch
Oval Tube: 11, 12 or 14 gauge
Options:
Truss Depth:
Hardware:
Product specifications

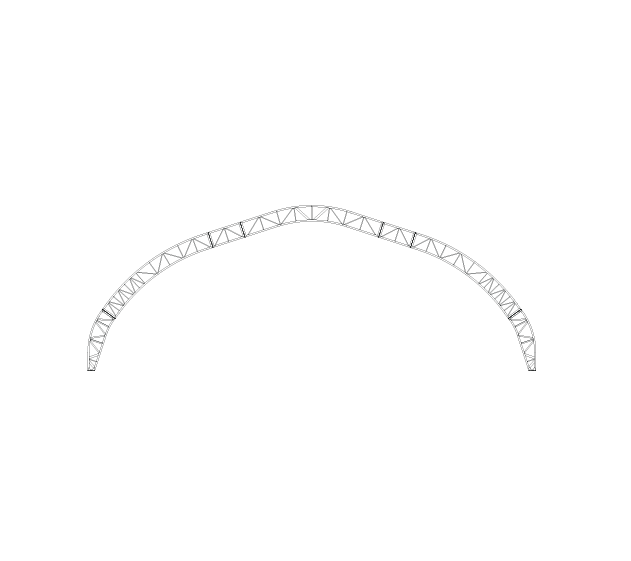

| HP-HD | 33' | 40' |
|---|---|---|
| TRUSS DEPTH | 16" | 16" |
| CENTER CLEARANCE | 15'3" | 16'3" |
| CLEARANCE (2') | 7'5" | 7'10" |
| CLEARANCE (4') | 9'10" | 9'10" |

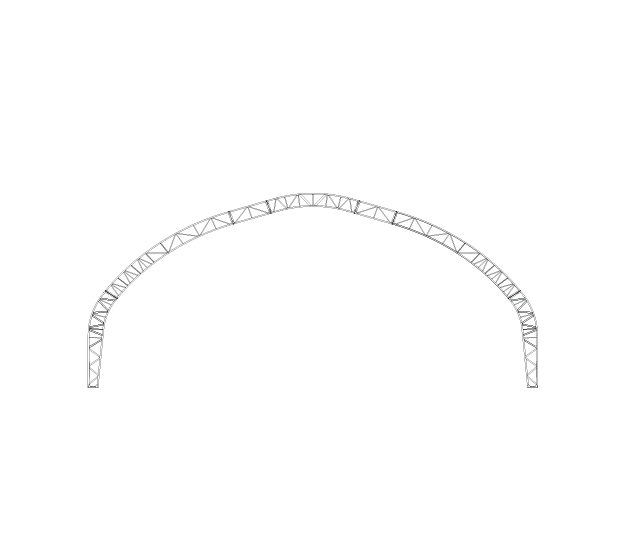

| XP-HD | 33' | 40' | 50' | 60' | 70' | 80' | 90' | 100' |
|---|---|---|---|---|---|---|---|---|
| TRUSS DEPTH | — | — | — | 24" | 24" | 24" | — | — |
| CENTER CLEARANCE | — | — | — | 27'5" | 29'0" | 30'8" | — | — |
| CLEARANCE (2') | — | — | — | 12'7" | 12'7" | 12'7" | — | — |
| CLEARANCE (4') | — | — | — | 15'3" | 15'3" | 15'3" | — | — |

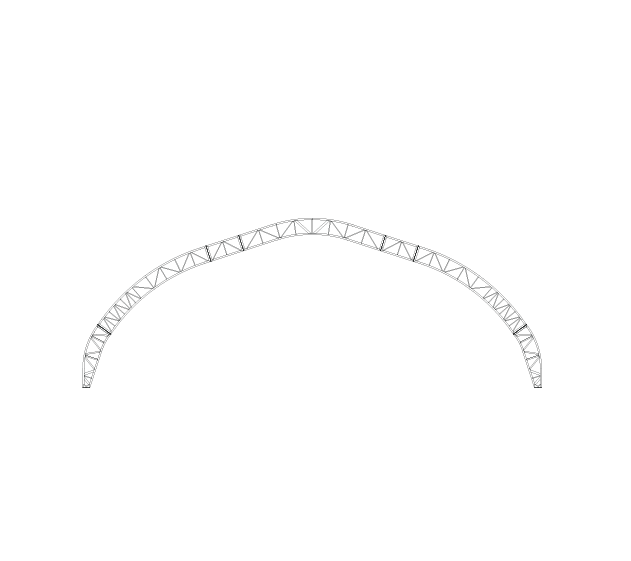

| HP-HHD | 33' | 40' | 50' | 60' | 70' | 80' | 90' | 100' |
|---|---|---|---|---|---|---|---|---|
| TRUSS DEPTH | — | — | — | 30" | 30" | 30" | 30" | — |
| CENTER CLEARANCE | — | — | — | 21'9" | 23'5" | 25'0" | 26'8" | — |
| CLEARANCE (2') | — | — | — | 6'1" | 6'1" | 6'1" | 6'1" | — |
| CLEARANCE (4') | — | — | — | 9'3" | 9'3" | 9'3" | 9'3" | — |
| XP-HHD | 33' | 40' | 50' | 60' | 70' | 80' | 90' | 100' |
|---|---|---|---|---|---|---|---|---|
| TRUSS DEPTH | — | — | — | 30" | 30" | 30" | 30" | 30" |
| CENTER CLEARANCE | — | — | — | 26’9" | 28'5" | 30'0" | 31'8" | 36'0" |
| CLEARANCE (2') | — | — | — | 11'9" | 11'9" | 11'9" | 11'9" | 11'9" |
| CLEARANCE (4') | — | — | — | 14'8" | 14'8" | 14'8" | 14'8" | 14'8" |
| XP-HD | 33' | 40' |
|---|---|---|
| TRUSS DEPTH | 16" | 16" |
| CENTER CLEARANCE | 21’9" | 22’9’’ |
| CLEARANCE (2') | 13’11" | 13'11" |
| CLEARANCE (4') | 16’4" | 16'4" |

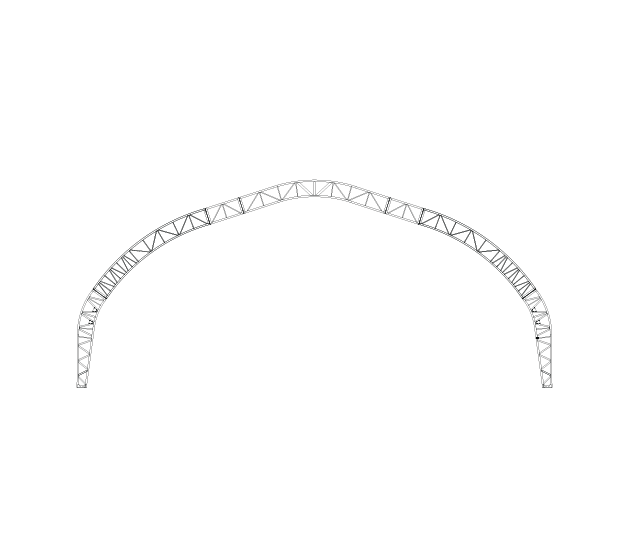

| XXP-HHD | 33' | 40' | 50' | 60' | 70' | 80' | 90' | 100' |
|---|---|---|---|---|---|---|---|---|
| TRUSS DEPTH | — | — | — | 30" | 30" | 30" | 30" | — |
| CENTER CLEARANCE | — | — | — | 32'9" | 34'5" | 36’0” | 37'8" | — |
| CLEARANCE (2') | — | — | — | 17'1" | 17'1" | 17'1" | 17'1" | — |
| CLEARANCE (4') | — | — | — | 20'3" | 20'3" | 20'3" | 20'3" | — |
| S100 | — | — | 100' | 125' | 140' | 160' | 140' | 160' |
|---|---|---|---|---|---|---|---|---|
| TRUSS DEPTH | — | — | 33" | 33" | 33" | 33" | 58" | 58" |
| CENTER CLEARANCE | — | — | 46'11" | 50' | 51'8" | 53’1” | 51'3" | 52'5" |
| CLEARANCE (2') | — | — | 14'5" | 14'5" | 14'5" | 14'5" | 9' | 9' |
| CLEARANCE (10') | — | — | 20'10" | 20'10" | 20'10" | 20'10" | 18' | 18' |
| HP-HD | 33' | 40' | 50' | 60' | 70' | 80' | 90' | 100' |
|---|---|---|---|---|---|---|---|---|
| TRUSS DEPTH | — | — | 24" | 24" | 24" | 24" | — | — |
| CENTER CLEARANCE | — | — | 20’9" | 22’4" | 24’0" | 25’7" | — | — |
| CLEARANCE (2') | — | — | 7'2" | 7'2" | 7'2" | 7'2" | — | — |
| CLEARANCE (4') | — | — | 9'10" | 9'10" | 9'10" | 9'10" | — | — |
WARRANTY
The steel structures supplied for MegaDome carry a limited, prorated warranty of 10 years for pre-galvanized steel and 15 years for hot-dip galvanized steel after welding.
The warranty applies to the original purchaser/customer, against any defects related to the original specifications (steel type, galvanization thickness, etc.) as well as manufacturing defects on the main structure components. This warranty is also limited to components which are manufactured by Harnois and shall be interpreted in the context of its anticipated life expectancy, when used for its original purpose and maintained as prescribed by the manufacturer. In terms of corrosion resistance, this means the structure shall not display more than 5% of surface rust after 10 years for pre-galvanized steel and 15 years for hot dip galvanized steel (performed after welding).
10 YEARS
Pre-galvanized structure
15-year warranty for hot-dip galvanized steel
15 YEARS
MEMBRANE
20-year warranty for Elite membrane
Foundations:
Concrete Blocks
Concrete Slab
In ground Concrete Beam
Continuous Floating
Continuous Deep
Concrete Piers
Grade Beam
Options:
CUSTOMIZE YOUR MEGADOME WITH OUR WIDE RANGE OF OPTIONS.
POWERSHIELD® Membrane
STANDARD
(16% light transmission)
COLOR TRIM
FIRE RETARDANT (FR)
END WALLS
OPEN
PARTIAL
CLOSE
METAL SHEETS
DOORS
SERVICE
GARAGE
MULTIPLE GARAGE
MULTIPLE GARAGE
LOADING DOCK
DOORS
EXHAUST VENTS
WALL VENTS
HIGH PERFORMANCE VENTILATION
TOP VENT
FANS
SKYVENT
OTHER
SNOW DEFLECTORS
CONNECTION TO AN EXISTING BUILDING
EXPANSION
BRANDING
ISOLATION
HEATING AND LIGHTING
Call PFP Buildings or visit www.megadomebuildings.com for more information
MegaDome Structures
We offer the complete line up of MegaDome Structures. These are top of the line, Canadian built steel structures with poly covers. In most cases the cost per square foot is considerably lower compared to other types of structures. Some models shown below.
Agricultural Livestock

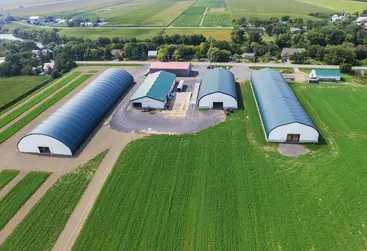

Agricultural Storage

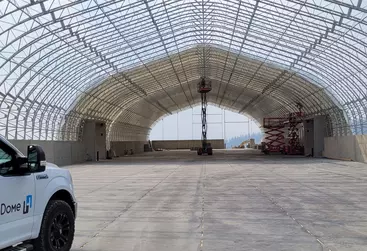

Commercial

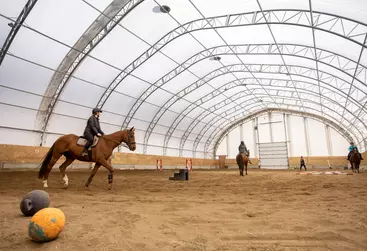

Equestrian

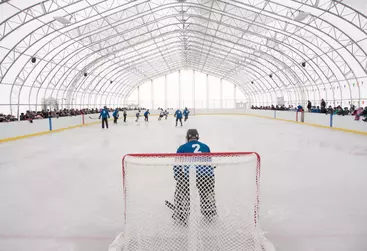

Leisure & Events

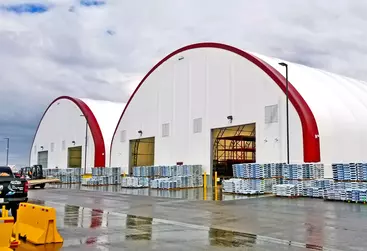

Manufacturing

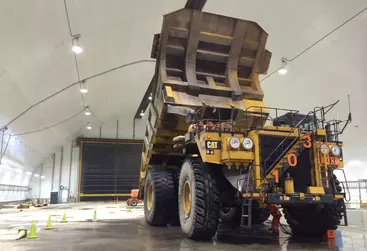

Mining
Public Works & Municipal
Call PFP Buildings or visit www.megadomebuildings.com for more information
